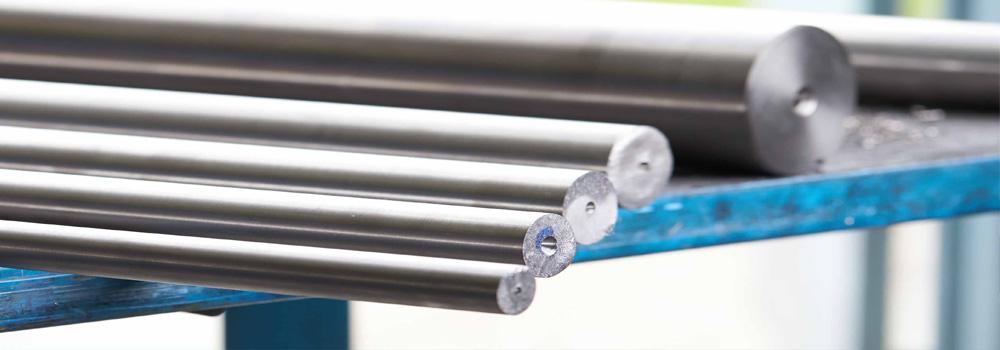

Inconel 600 Round Bars

Inconel 600 Bar, Alloy 600 Square Bar, UNS N06600 Flat Bar, DIN 2.4816 Threaded Bar, ASTM B166 Inconel Alloy 600 Rods, 600 Inconel Round Bar Manufacturer in India, Alloy 600 Bars Stockist In India.

Aashish Metal & Alloys is a prominent exporter and manufacturer of Inconel 600 Round Bars, which have suitable corrosion resistance and better dimensional accuracy.

We provide first-class confident variety of such bars this is being designed to provide accuracy. They are to be had to our precious clients in a selection of various bureaucracy and brands that may be convoyed within the organization of epoxy coating and warm dip galvanization for to make higher their carrier life. Inconel Alloy UNS N06600 Flat Bars are in acquiescence by the enterprise time-honoured norms and requirements are being exported and synthetic to everywhere in the world. Rigorously first-class examined at the strictures of corrosion resistance and tolerance, they’re being supplied to our precious clients by mill take a look at certificates for the first-class assessment functions.

Table of Content

Inconel 600 Bright Bar, Inconel® Alloy 600 Hex Bar, Nickel Alloy 600 Round Bars, Alloy 600 Rectangular Bar, Inconel 600 Hollow Bar, 600 Inconel Alloy Round Bar Suppliers in Mumbai, India.

It may be supplied after epoxy coating, electro sprucing and warm dip galvanizing, as consistent with the request via way of our precious clients. Inconel Alloy DIN 2.4816 Square Bars are considerably utilized in sectors like Cement Government Companies, Oil Refineries, Petrochemicals Plants, etc. They also are utilized in Sugar Mills, Fertilizers Plants, Pharmaceuticals, Textile Machinery, Chemical Plants, Power Industry, and Industrial Machineries. Quite smooth to install, they’re abrasive chemical, excessive in temperature, and resistant corrosion. Some critical traits are along with its far excessive resistance to regular attack, super limited corrosion resistance, and extraordinary strain corrosion cracking resistance. It additionally has exceptional resistance to acids along with sulphuric, nitric, hydrochloric, hydrofluoric, chromic, etc.

It gives excessive resistance to oxidation at hovering temperatures, and no problem of fabrication and welding. Nickel Alloy 600 Threaded Bars is a nickel-molybdenum-chromium super-alloy by an accumulation of tungsten designed to have a super corrosion resistance in an extensive variety of harsh environments. It is carried out to exclusive noticeably corrosion resistant metallic alloys. Available in exclusive sizes, specifications, thickness and grades, they’re considerably utilized in exclusive utility in industries like chemical processing, oil & gas, petrochemical, and so on. It is usually utilized in noncritical and inexpensive home equipment along with business cooling water systems, fire protection, etc.

Inconel 600 Round Bars Specifications

DimensionsEN, DIN, JIS, ASTM, BS, ASME, AISI
Standard ASTM B166, ASME SB166
Hex Bar size2-100mm A/F
Round bar sizeDiameter: 3-~800mm
Flat bar sizeThickness: 2 -100mm
Width: 10 to 500mm
Angle bar size3mm*20mm*20mm~12mm*100mm*100mm
Square bar size4 to 100mm
Channel Bar80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Rectangular Bars Section3.0 to 12.0mm thickness
Threaded Bar Billet Size1/2 to 495mm Diameter
Rectangles Size33 x 30mm to 295 x 1066mm
Hollow Bar32mm OD x 16mm ID to 250mm OD x 200mm ID)
ToleranceH8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
FinishCold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
SurfaceHot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
ConditionHardened & tempered, annealed
TechniqueCold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
ProcessingBar cutting to 650mm
FormRod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

Inconel 600 Round Bars Equivalent Grades

STANDARD UNS DIN AFNOR GOST OR BS JIS EN
Inconel 600 N06600 2.4816 NC15FE11M МНЖМц 28-2,5-1,5 ЭИ868 NA 13 NCF 600 NiCr15Fe

Inconel 600 Round Bars Quality and Test reports

  • Third Party Inspection
  • EN 10204/3.1B
  • 100% Radiography Test
  • Raw Materials Certificate
  • Mill test

Inconel 600 Round Bars Surface Finish

CD Cold drawn P Polished
BD Bright drawn SRE Slit rolled edge
CG Centreless ground HF Hot finished
CF Cold finished HRAP Hot rolled annealed and pickled
P&T Peeled and turned RT Rough turned/peeled
ST Smooth turned PR Peeled and reeled

We Supplied a Comprehensive Range Of Inconel 600 Round Bars

Buy 600 Stainless Steel Round Bars only From PED Approved Manufacturer
Contact Us
Square Bar
Inconel 600 Square Bar
Hex Bar
Inconel 600 Hex Bar
Flat Bar
Inconel 600 Flat Bar
Rectangular Bar
Inconel 600 Rectangular Bar
Bright Bar
Inconel 600 Bright Bar
Forged Bar
Inconel 600 Forged Bar
Hollow Bar
Inconel 600 Hollow Bar
Threaded Bar
Inconel 600 Threaded Bar

Dimensions Of Hot Rolled Inconel 600 Round Bar

Diameter or
Width
(mm)		 Weight per meter Sectional Area Perimeter
Square
(kg)		 Round
(kg)		 Square
(cm²)		 Round
(cm²)		 Square
(cm)		 Round
(cm)
5.0 0.20 0.15 0.25 0.20 2.0 1.57
5.5 0.24 0.19 0.30 0.24 2.2 1.78
6.0 0.28 0.22 0.36 0.28 2.4 1.88
7.0 0.38 0.30 0.49 0.38 2.8 2.20
8.0 0.50 0.39 0.64 0.50 3.2 2.51
9.0 0.64 0.50 0.81 0.64 3.6 2.83
10 0.73 0.63 1.00 0.79 4.0 3.14
11 0.95 0.75 1.21 0.95 4.4 3.46
12 1.13 0.89 1.44 1.13 4.8 3.77
14 1.54 1.21 1.96 1.54 5.6 4.40
16 2.01 1.58 2.56 2.01 6.4 5.03
18 2.54 2.00 3.24 2.54 7.2 5.65
20 3.14 2.47 4.00 3.14 8.0 6.28
22 3.80 2.98 4.84 3.80 8.8 6.91
25 4.91 3.85 6.25 4.91 10.0 7.85
28 6.15 4.83 7.84 6.16 11.2 8.80
32 8.04 6.31 10.24 8.04 12.8 10.05
36 10.17 7.99 12.96 10.18 14.4 11.31
40 12.56 9.86 16.00 12.57 16.0 12.57
45 15.90 12.49 20.25 15.90 18.0 14.14
50 19.62 15.41 25.00 19.64 20.0 15.71
56 24.62 19.34 31.36 24.63 22.4 17.59
63 31.16 24.47 36.69 31.17 25.2 19.79
71 39.57 31.08 50.41 39.59 28.4 22.31
80 50.24 39.46 64.00 50.27 32.0 25.13

Inconel 600 Round Bar Size Chart

Metric US Bar ASTM/ Canadian Japanese
Bar Size Diam. (mm) Bar Size Diam. (Inch) Bar Size Diam. (mm2) Bar Size Diam. (mm)
5 5 #2 0.250 10M 100 6 6
5.5 5.5 #3 0.375 15M 200 10 10
6 6 #4 0.500 20M 300 13 13
7 7 #5 0.625 25M 500 16 16
8 8 #6 0.750 30M 700 19 19
9 9 #7 0.875 35M 1000 22 22
10 10 #8 1.000 45M 1500 25 25
11 11 #9 1.125 55M 2500 29 29
12 12 #10 1.250 32 32
14 14 #11 1.375 35 35
16 16 #12 1.500 38 38
18 18 #13 1.625 41 41
20 20 #14 1.750 44 44
22 22 #15 1.875 48 48
25 25 #16 2.000 51 51
28 28 #18 2.250 57 57
32 32
36 36
40 40
44 44
50 50

Standard Sizes ASTM B166 Inconel 600 Hex Bar

Size in Inches Wt per Ft Wt per 12′
3/16″ 0.104 1.248
1/4″ 0.180 2.160
5/16″ 0.290 3.480
3/8″ 0.420 4.920
7/16″ 0.560 6.72
1/2″ 0.740 8.880
9/16″ 0.930 11.16
5/8″ 1.150 13.80
11/16″ 1.390 16.68
3/4″ 1.660 19.92
13/16″ 1.950 23.40
7/8″ 2.300 27.60
15/16″ 2.600 31.20
1″ 2.90 34.80
1-1/16″ 3.30 39.60
1-1/8″ 3.700 44.40
1-1/4″ 4.600 55.20
1-5/16″ 5.100 61.20
1-3/8″ 5.600 67.20
1-7/16″ 6.100 73.20
1-1/2″ 6.600 79.20
1-5/8″ 7.800 93.60
1-3/4″ 9.030 108.36
1-7/8″ 10.400 124.80
2″ 11.80 141.60
2-1/4″ 14.920 179.04
2-3/8″ 16.920 203.04
2-1/2″ 18.42 221.04
3″ 26.53 318.36

Inconel 600 Flat Bar Size

Flat Bar Sizes in mm Flat Bar Size (inch) Flat Bar Thickness (mm) Flat Bar Thickness (in Inches)
22 7/8 17 & 18 2/3 – 5/7
25 1 5 to 20 3/16 – 4/5
30 1-3/16 5 to 20 3/16 – 4/5
32 1-1/4 6 to 20 1/4 – 4/5
35 1-3/8 5 to 20 3/16 – 3/16
40 1-4/7 5 to 25 3/16 – 1
45 1-7/9 5 to 25 3/16 – 1
47 1-6/7 17,25 & 32 2/3, 1 & 1-1/4
50 2 5 to 32 3/16 – 1-1/4
55 2-1/16 5 to 25 3/16 – 1
57 2-1/4 32 1-1/4
60 2-3/8 5 to 35 3/16 – 1-3/8
63 2-1/2 10 to 30 3/8 – 1-3/16
65 2-5/9 10 to 30 & 35 3/8 – 1-3/16, & 1-3/8
70 2-3/4 6 to 25 & 40 1/4 – 1, & 1-4/7
75 3 8 to 25 5/16 – 1
80 3-1/8 8 to 20 5/16 – 4/5
90 3-1/2 8 to 20 5/16- 4/5
100 4 8, 10, 12 5/16, 3/8, 1/2

Size chart of Inconel 600 Square Bar

Square bar Size KG’s per Metre Standard Length (metres) Colour Code
10 x 10 0.81 6.0 Yellow
12 x 12 1.16 6.0 Pink
16 x 16 2.06 6.0 Grey
20 x 20 3.22 6.0 Green
25 x 25 5.03 6.0 Purple
32 x 32 8.24 6.0 Orange
40 x 40 12.8 6.0 Yellow
50 x 50 20.12 6.0 Green

Inconel 600 Round Bar Weight Chart

Diameter Weight Chart Dia Weight Chart
(mm) per metre (kg) (in) per metre (kg)
3mm 0.06 1/8″ 0.06
4mm 0.10 3/16″ 0.14
5mm 0.16 1/4″ 0.25
6mm 0.22 5/16″ 0.39
7mm 0.30 3/8″ 0.56
8mm 0.40 7/16″ 0.77
10mm 0.62 1/2″ 1.00
12mm 0.89 9/16″ 1.22
14mm 1.22 5/8″ 1.56
15mm 1.40 11/16″ 1.89
16mm 1.59 3/4″ 2.25
18mm 2.01 7/8″ 3.07
20mm 2.48 1″ 4.03
22mm 3.00
24mm 3.57
25mm 3.88

We Keep Bulk Stock Of Inconel 600 Round Bars At Our Stockyard, Contact Us For Free Sample & Stock List.

Chemical Composition of Inconel 600 Round Bar

GradeNiFeCMnSiCuCrSMoCoAlTiNb
60072.0 min6.0 – 10.00.15 max1.0 max0.5 max0.5 max14.0 – 17.00.015 max–––––

Mechanical Properties of Inconel 600 Round Bar

GradeTensile (psi).2% Yield (psi)Elongation (%)
60095,00045,00040

For Inconel 600 Round Bars price list

Request the latest Inconel 600 Round Bars List. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Aashish Metal & Alloys maintains a stock of all standard items and can export them at best price for Inconel 600 Round Bars .

We supply of variety Inconel 600 Round Bars

Aashish Metal & Alloys is a Highly Acclaimed Manufacturer & suppliers of Inconel 600 Round Bars offering all varieties in all types of Inconel 600 in all sizes, with more then 52 countries worldwide.

Inconel 600 Round Bar Inconel 600 Bars
Inconel 600 Half-Round Bar Inconel® Alloy 600 Polished Bar
Inconel 600 Round Bar Price List Inconel Alloy 600 Hexagonal Bar
Inconel 600 Square Bar 600 Inconel Bright Bar
Alloy 600 Threaded Bar Inconel Alloy 600 Polished Bars
600 Inconel Rectangular Bar Alloy 600 Flat Bars Expoter
Inconel 600 Rods Inconel 600 Hollow Bar
DIN 2.4816 Round Bars ASTM B166 Inconel 600 Hex Bar
Nickel Alloy 600 Rods 600 Inconel Black Bar
Inconel 600 Triangular Bars Inconel Alloy 600 Round Rod
Inconel 600 Cold Rolled Bar Inconel® Alloy 600 Precision Ground Stock
Alloy 600 Precision Ground Bar UNS N06600 Flat Bar
ASTM B166 Inconel 600 T-Bar 600 Inconel Cold Drawn Round Bar
Alloy 600 Bar Manufacturers in India Inconel® Alloy 600 Forged Bars
ASTM B166 Alloy 600 Threaded Bar Hot Rolled Inconel ASTM B166 Type 600 Bar
ASTM B166 Type 600 Cold Rolled Bar Alloy 600 Hex Bar Supplier
Alloy 600 Bright Bar Price List In India Inconel® Alloy 600 Bar

Application Of Inconel 600 Round Bars

Industry
We Serve

Application Industry

Automotive and aerospace industry, Chemical industry, Heat exchanger, Food processing equipment, Architectural trim and molding, Kitchen benches, sinks, equipmentrtc

For More Information About Inconel 600 Round Bars please call +91-22-66362223 / 66394926 or send an email to export@aashishmetal.com
